260W Honeycomb Effect  Moving Head Beam

260W Honeycomb Effect Moving Head Beam

    Model:WL-B260

    Light source:260W PHOENIX LAMP

    Size:320*220*580m

    Packing number:14.8

PARAMETER
EFFECT PICTURE
VIDEO
ACCESSORIES

Input Voltage(V): AC100V-240V/50-60Hz
Total Power: 375W
Fuse: 7A
Ballast: Electrical
Lamp: PHOENIX
Lamp Power: 260w
Color Temperature(CCT): 8500K
Average lifetime: 2,000 hour (pack lamp & reflection cup to lengthen lifetime)
Motors: 14 super mute motors, XY three-phase motor
Fixed color: 11 color + white, halftone effect adjustment
Prisms: 8-facet prism + Honeycomb prism (2 prisms can be superimposed to 40, can be two-way independent rotation)
Frost/Atomization: independent frost effect, spot soft and natural
Channel: 18CHs
Control mode: international standard DMX512, automatic and master/ slave mode
Surface: High temperature resistant plastic

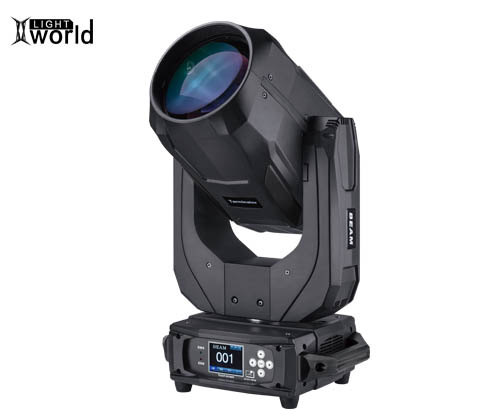

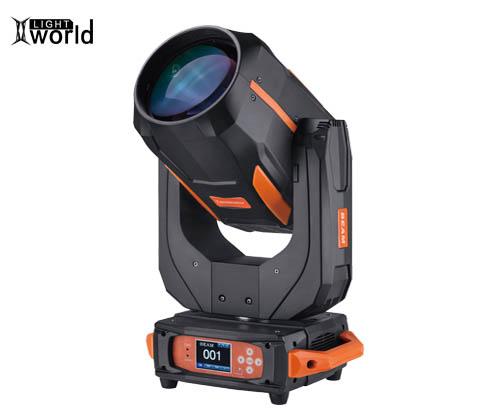

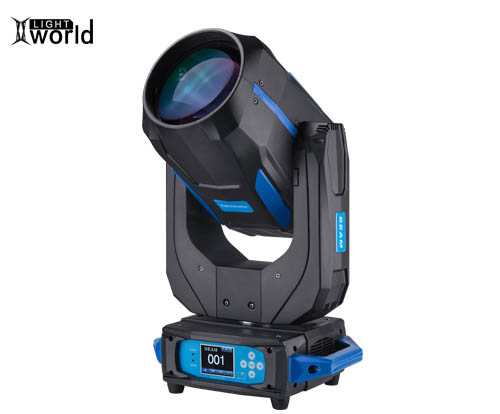

Body color: black/ orange/ blue/ white
IP Rating: IP20
Size: 320*220*580mm (LWH)
Net Weight: 14.8kg

Standard control signal: DMX512
LCD: LCD 65 million color touch TFT interface, easy to operate, high-definition screen, the interface can be 180 degrees reverse display.
Scanning speed: X to 2.6 seconds / 540 degrees, Y to 1.24 seconds / 270 degrees (16Bit precision scan), Automatic calibration positioning, fast & stable & noiseless.
Strobe: two-piece strobe (0.5-9 times / sec), complete linear dimming and variable strobe speed.
Color wheel: with 14 colors + blank (to create a sharp beam effect)
Gobo: 17 fixed patterns + blank (change the shape of beam)
Prisms: 8-facet prism + Honeycomb prism.
Adjustable rotating angle, max. opening angle of 60 degrees, combined with the pattern function can be achieved separately: 8 +24 +48 beam effect (switchable) ,with two-way independent slow/fast rotation function.
Frost: Soft light effect, easy to achieve the effect of soft and fantasy pattern
Focus: 3 sets optical lens combination, beam effect is much better than normal ones,can cast a high-definition pattern
Beam angle: 0-3.8 degree
Other: Overheating intelligent protection.
Intelligent light bulb switch control (to extend the lamp lifetime)
